Lasting Department

Showing 1–9 of 24 results

Lasting Conveyor
14 Mtr Rubber Belt Lasting Conveyor width 1300 and Height 720mm including 2*1.5mtr NIR Oven
Read more

14 Mtr Rubber Belt Lasting Conveyor width 1300 and Height 720mm including 2*1.5mtr NIR Oven

Descriptions :

Each 1.5 Meter Oven: 1KW*8 sets Nir Light Blower: 1/4HP 4 sets Transmission Cable 14 Meter: 35mm²x5 core cable Total Power: 18 Kw
2 Hot & 2 Cold Stations
2 Hot 2 Cold Backpart Molding Machine With Flanging Device(Electro Mechanical Type)
Read more

2 Hot 2 Cold Backpart Molding Machine With Flanging Device(Electro Mechanical Type)

Descriptions :

(Features) 1) It is suitable for moulding of counter/back part made of different materials 2) The mould made of rubber pad which is suitable for leather, fashion shoe/boot 3) The upper and lower moulds are made based on the lasts of customers, which will lead to a perfect appearance. (Specification)...
With Thermocement

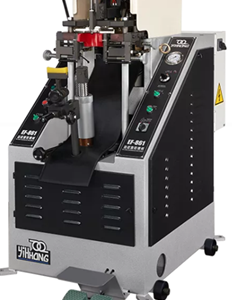

Automatic Cementing Heel-lasting Machine – With Cementing
Read more

Automatic Cementing Heel-lasting Machine - With Cementing

Descriptions :

Equipped with hot-melt cementing device : Heel-lasting by hot-melt cement has much stronger attachment quality. The chain surrounded on the back of heel band provides perfect and tight attachment of shoe last to the band : Consequently wrinkle formation is totally impossible. Replcement of different bands can be made by...
Without Thermocement

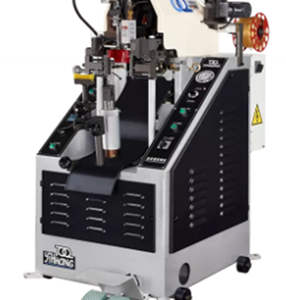

Automatic Heel-lasting Machine – Without Thermo-Cement
Read more

Automatic Heel-lasting Machine - Without Thermo-Cement

Descriptions :

The chain surrounded on the back of heel band provides perfect and tight attachment of shoe last to the band. Second pressure exerted on the wiper can be adjusted to exert at any time during wiper movement. Machine Size (LxWxH): 1200x760x1420 mm, Packing Size (LxWxH): 1400x820x1680 mm, Capacity (8Hr): 2200...
Roughing Machine
Bottom Roughing With Dust Collector
Read more

Bottom Roughing With Dust Collector

Descriptions :

With all standard accessories: This machine is used for toe cap and heel polishing for adhesive leather shoes. RPM: 2500 r/min Total Power: 1.5 KW Power Supply: 380 V 50 Hz Quality: 104 Kg Dimension: 680 x 655 x 950 mm
With Thermocement Uncategorized

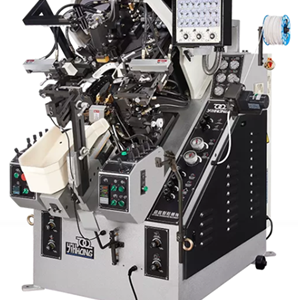

Computerized Automatic Cementing Toe-Lasting Machine(Button Type) With Thermocement – 9 Pincers
Read more

Computerized Automatic Cementing Toe-Lasting Machine(Button Type) With Thermocement - 9 Pincers

Descriptions :

Flash-open Toe Pincers: Decreases tension on shoe uppers effectively. Last Support Double Rise System: Lowers the possibility of breaking shoe uppers. Independent Pincer Pull Adjustment: Balances the tension on upper automatically at any point. Automatic Rear Pincer Turning: Helps obtain good fit to the last on shoe waist areas. Pincers...
Without Thermocement Uncategorized

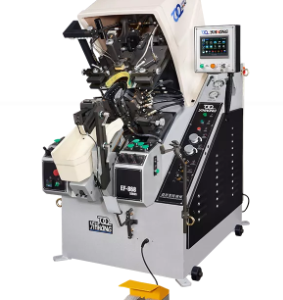

Computerized Fully Automatic Toe Lasting Machine
Read more

Computerized Fully Automatic Toe Lasting Machine

Descriptions :

Without Thermocement with HMI. Multiple Language Screen Display: Available languages include Chinese, English, Turkish, Spanish, Vietnamese, Indonesian and Russian. Machine Size (LxWxH): 1750x1010x1950 mm Packing Size (LxWxH):1880x1060x2140 mm Capacity (8Hr): 2000 Pairs Hydraulic Oil: 130 Liters N.W.: 1195 kgs G.W.: 1355 kgs Power: 3 KW
With Thermocement

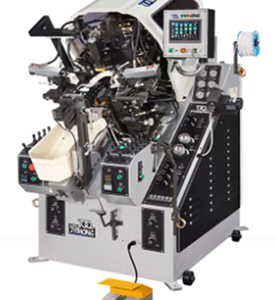

Computerized Programmable with Cementing Toe-Lasting Machine
Read more

Computerized Programmable with Cementing Toe-Lasting Machine

Descriptions :

(Joy-stick System) With 9 Pincers Touch Screen Interface: User-friendly page arrangement, operate with great ease. 3-Pressure Toe Pad: Supply appropriate pressure when needed. Quick-Change Wipers: No need of tools for changing wipers, providing instant shoe style change. Quick-Change Toe Band: Automatically adjust distance between 1st pincer and last support, offering...
Floor Type Heat Setter
Floor Type Heat Setter Machine 4.00 Mtr
Read more

Floor Type Heat Setter Machine 4.00 Mtr

Descriptions :

Width: 1220mm Height: 1350mm Power: 25kw
